Translation Lookaside Buffers (TLB)

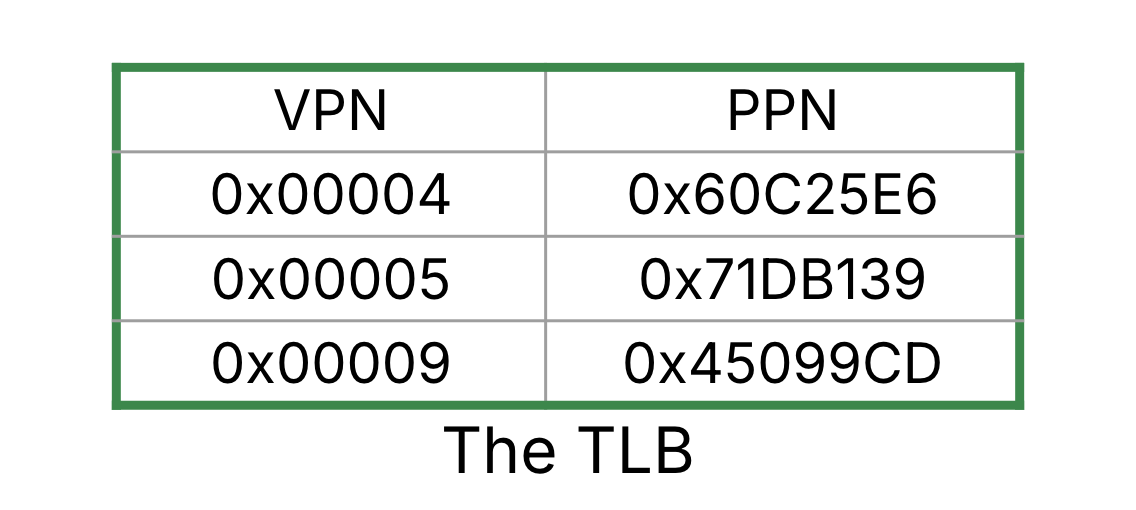

Figure 1:The Translation Lookaside Buffer (TLB).

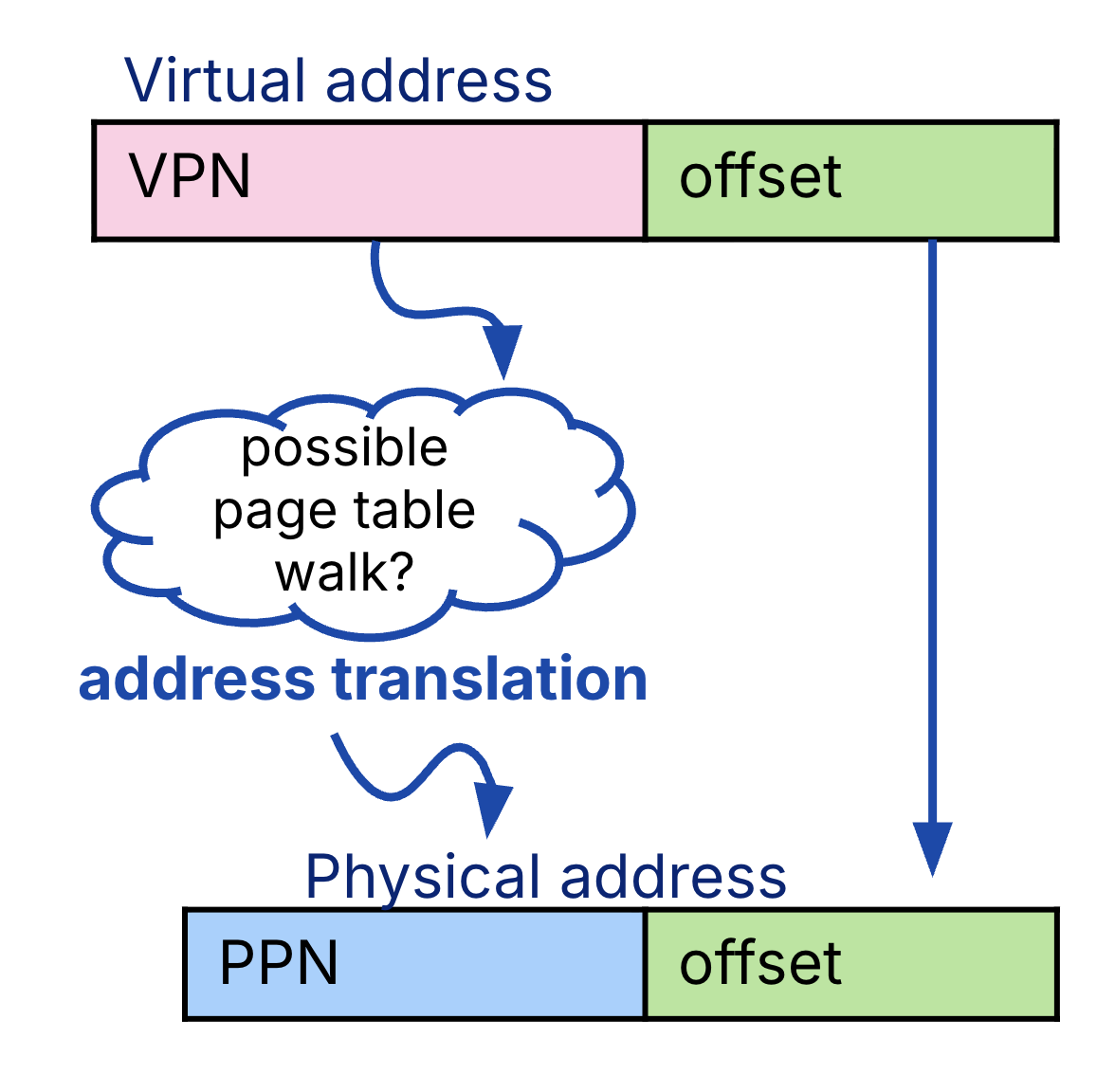

Figure 2:Page table walk is inefficient.

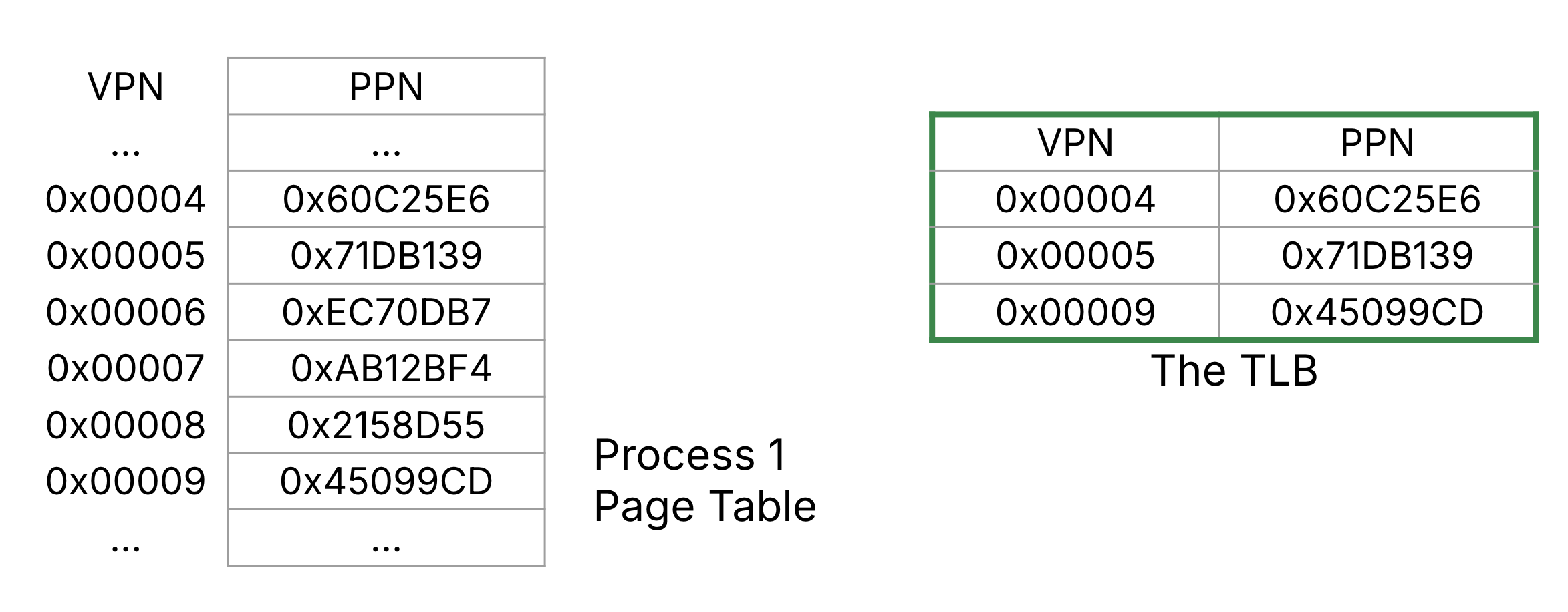

Figure 3:The TLB helps decrease amount of page table walks necessary.

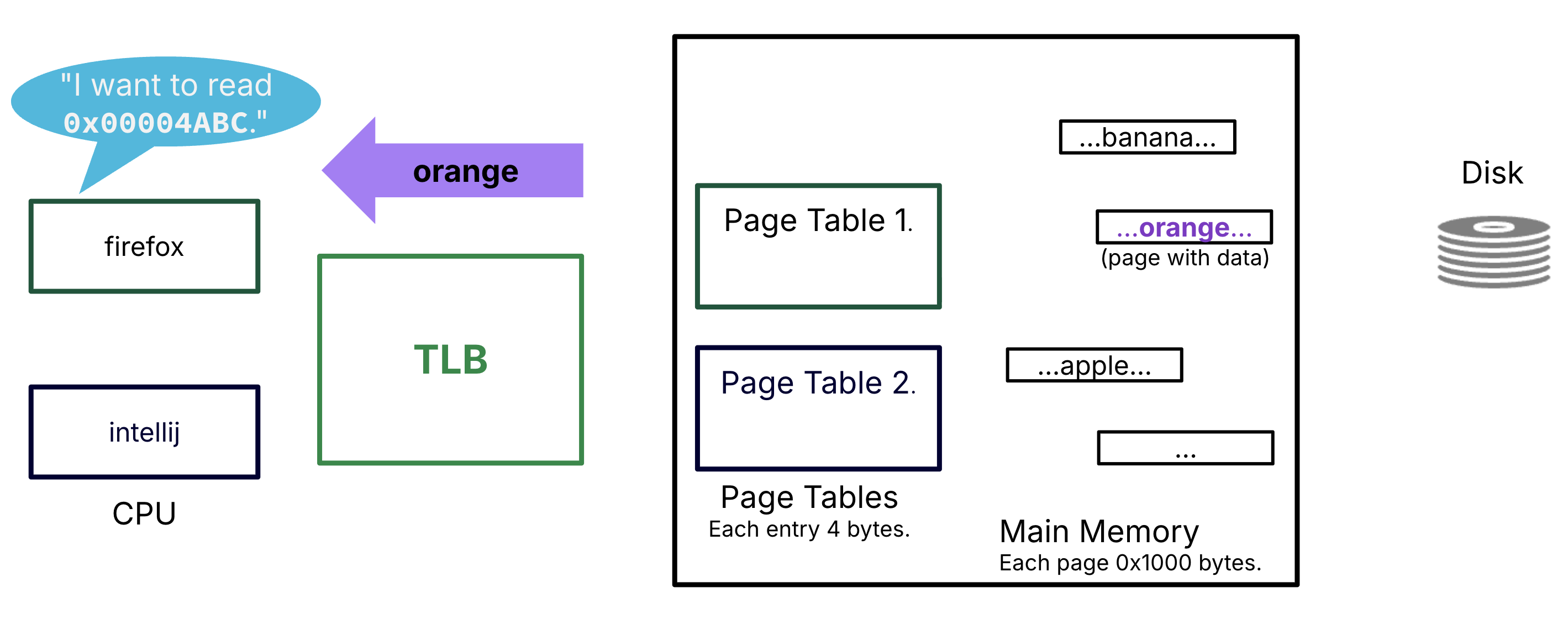

Figure 4:Example of address translation with TLB.

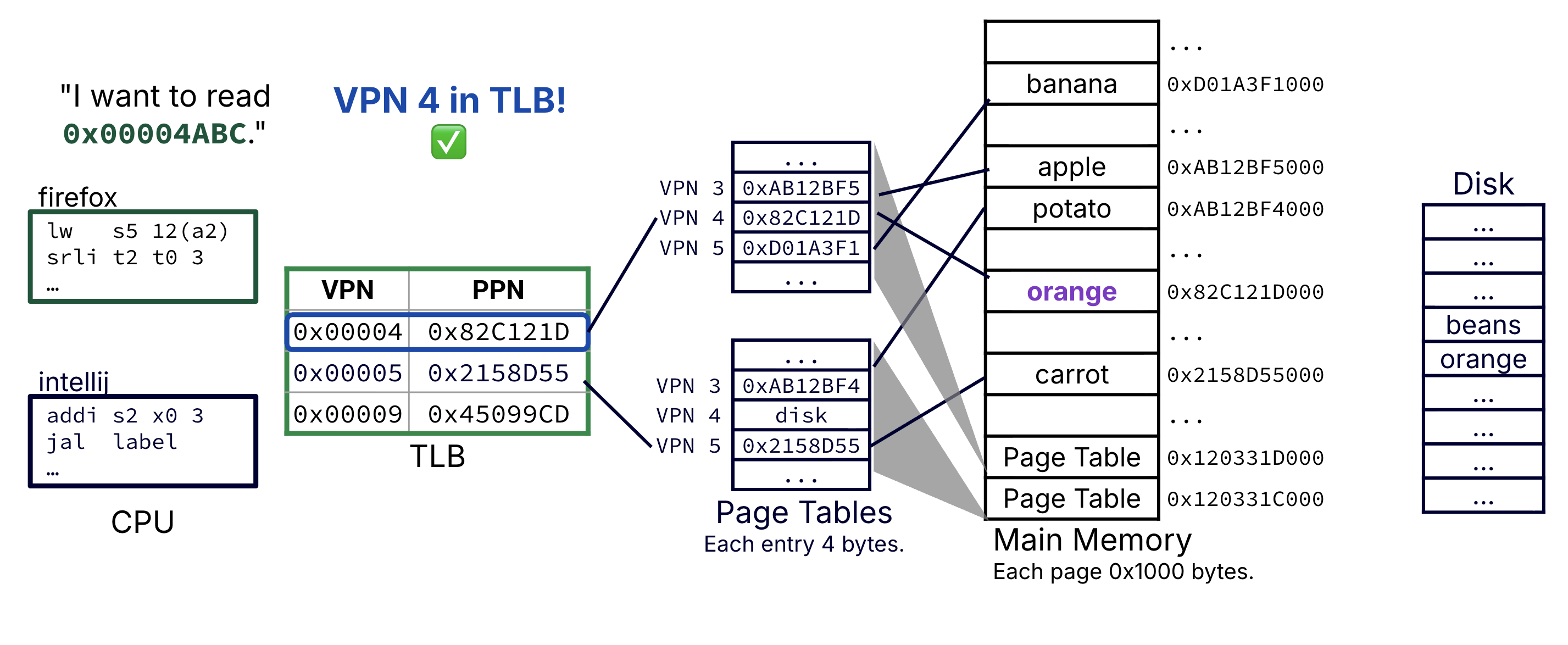

Figure 5:Example of address translation with TLB (hit).

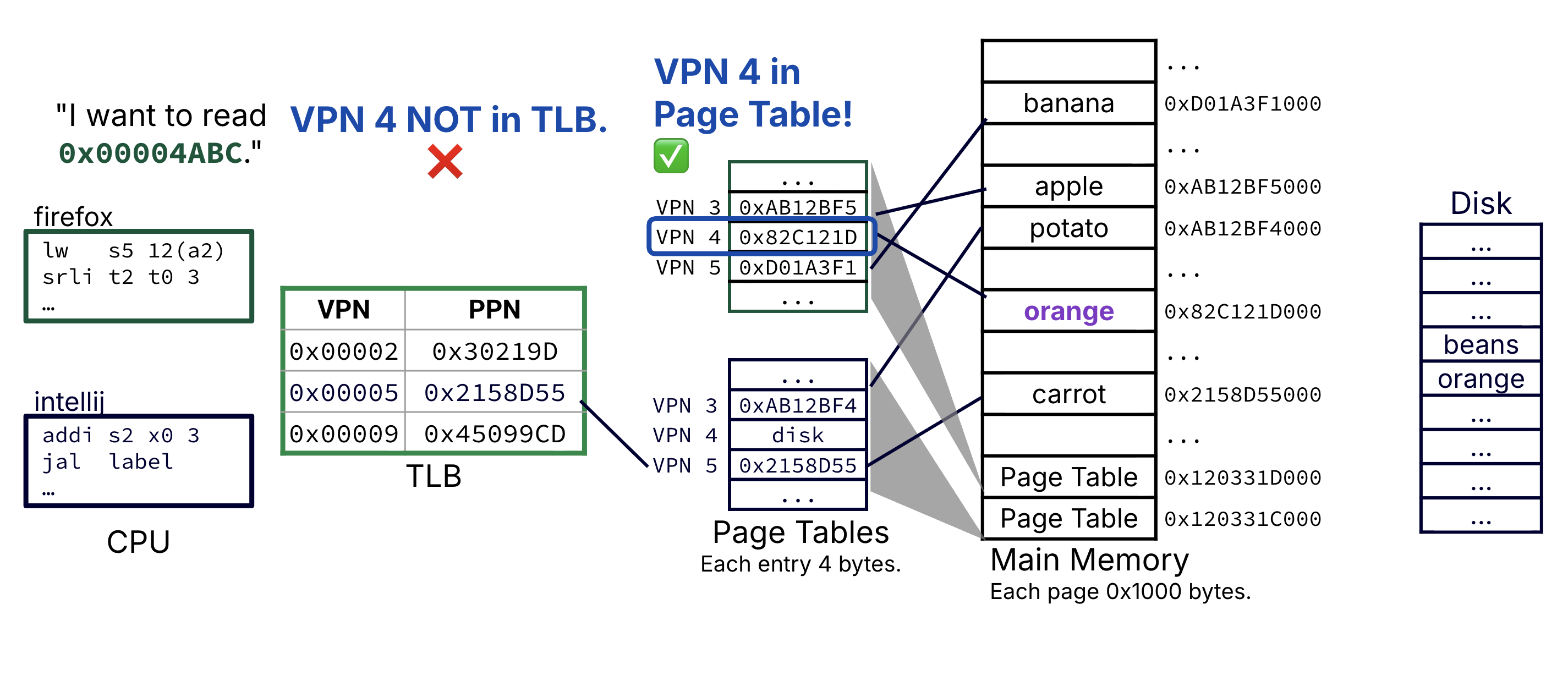

Figure 6:Example of address translation with TLB (miss).

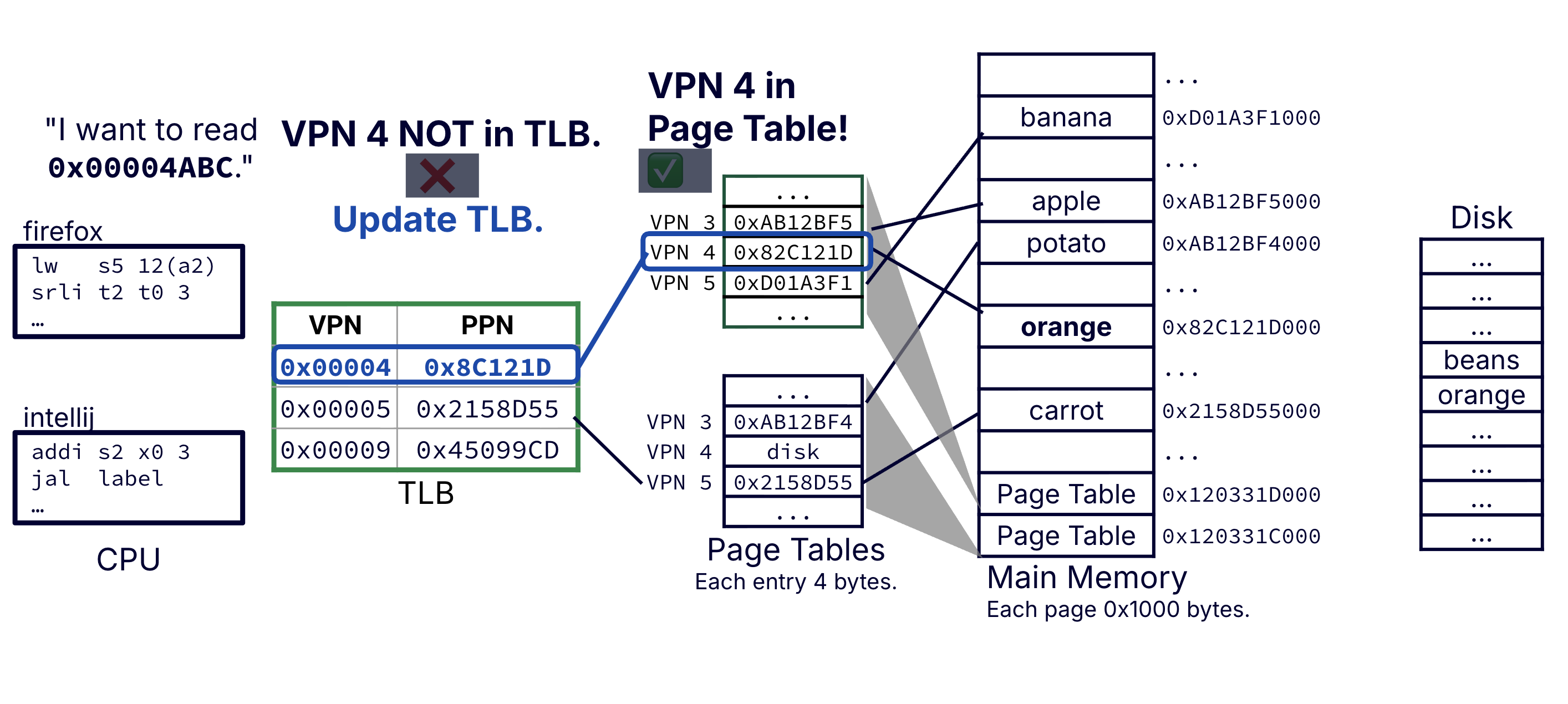

Figure 7:Example of address translation with TLB (miss).

1Learning Outcomes¶
