1Learning OutcomesĀ¶

šŸŽ„ Lecture Video

2VisualsĀ¶

Physical memory broken into pages.

FigureĀ 1:Physical memory broken into pages.

Each process has a page table.

FigureĀ 2:Each process has a page table.

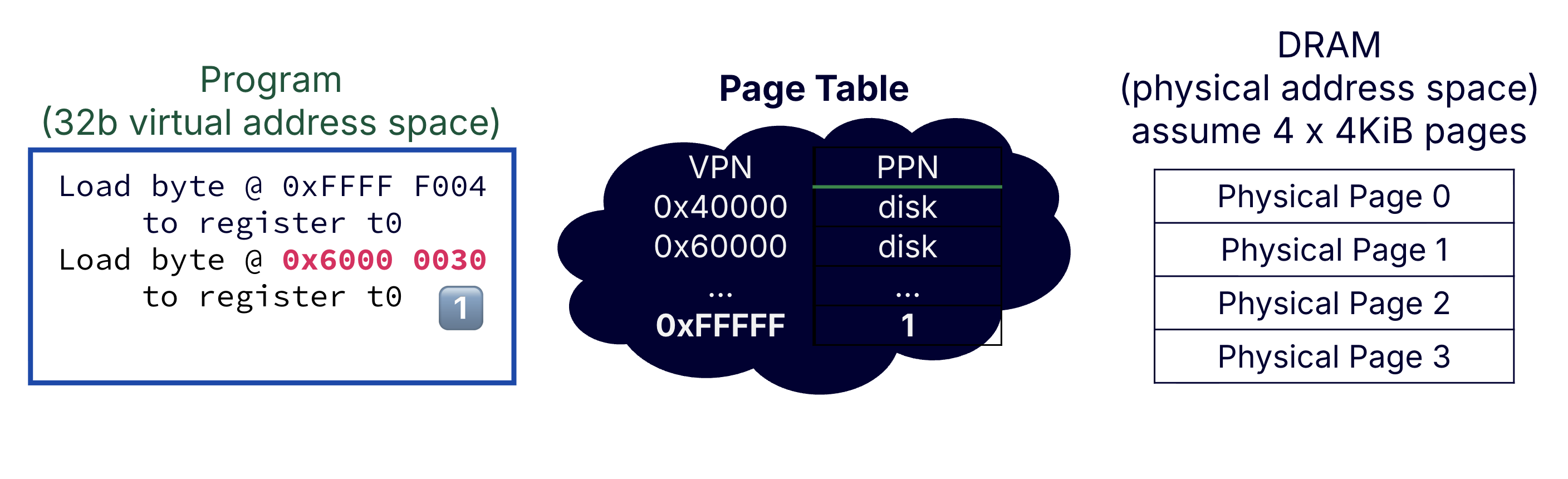

Example of page table walk (page fault).

FigureĀ 3:Example of page table walk (page fault).

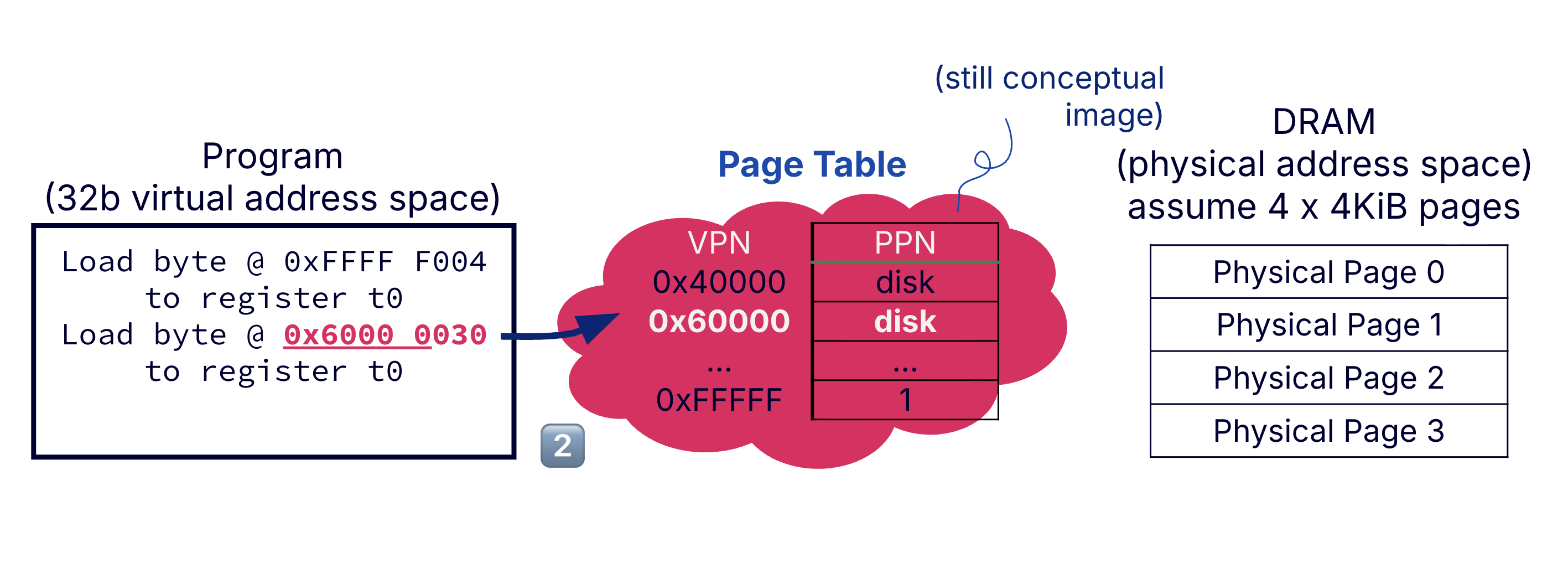

Example of page table walk: get VPN.

FigureĀ 4:Example of page table walk: get VPN.

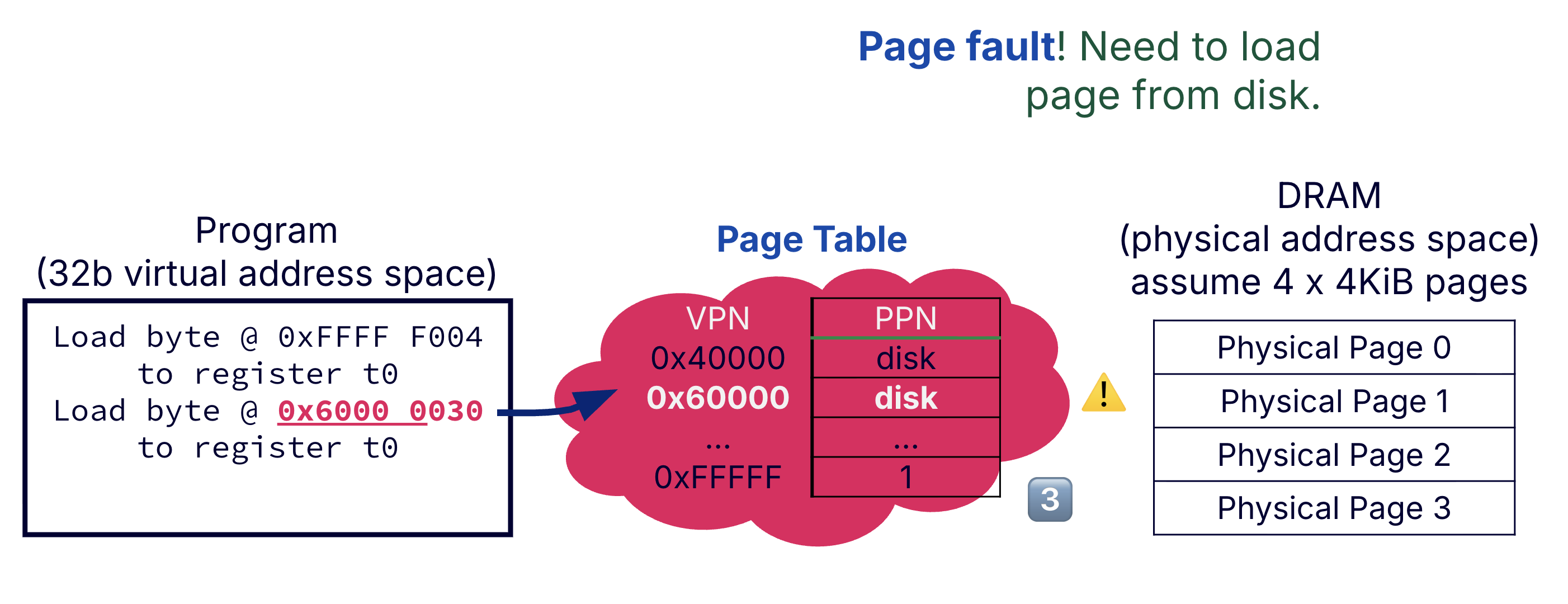

Example of page table walk: look up PPN.

FigureĀ 5:Example of page table walk: look up PPN.

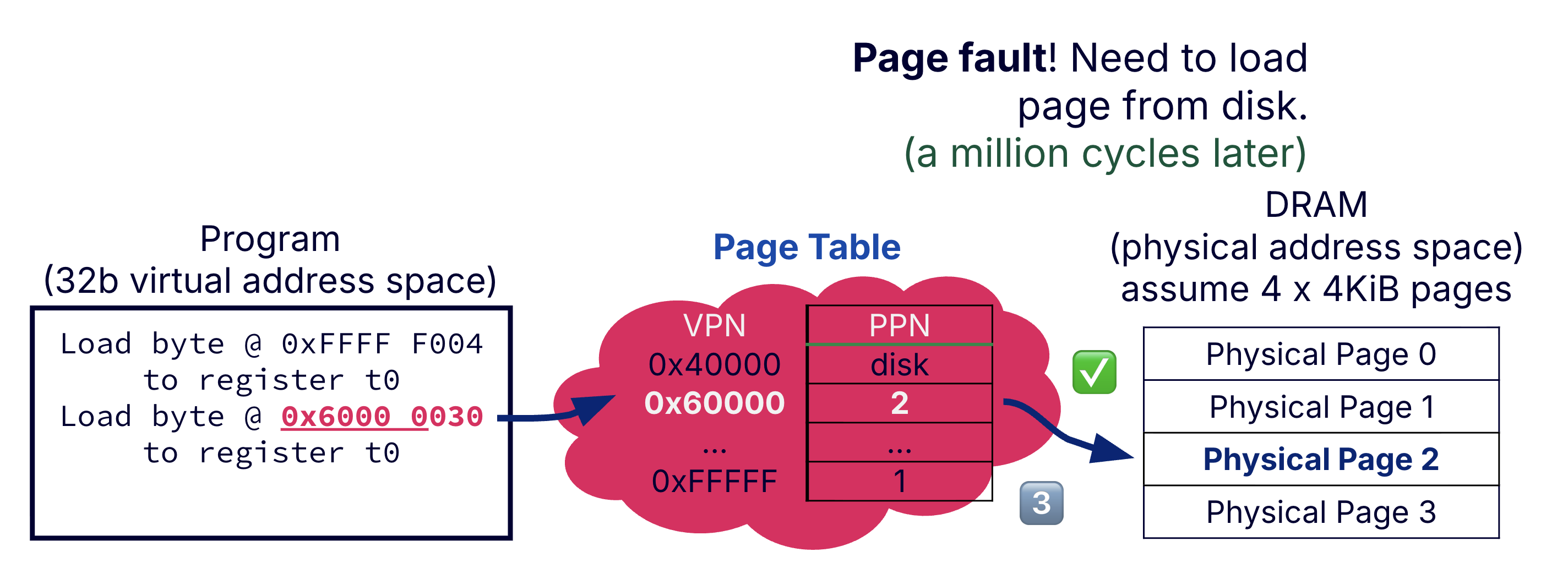

Example of page table walk: load page from disk.

FigureĀ 6:Example of page table walk: load page from disk.

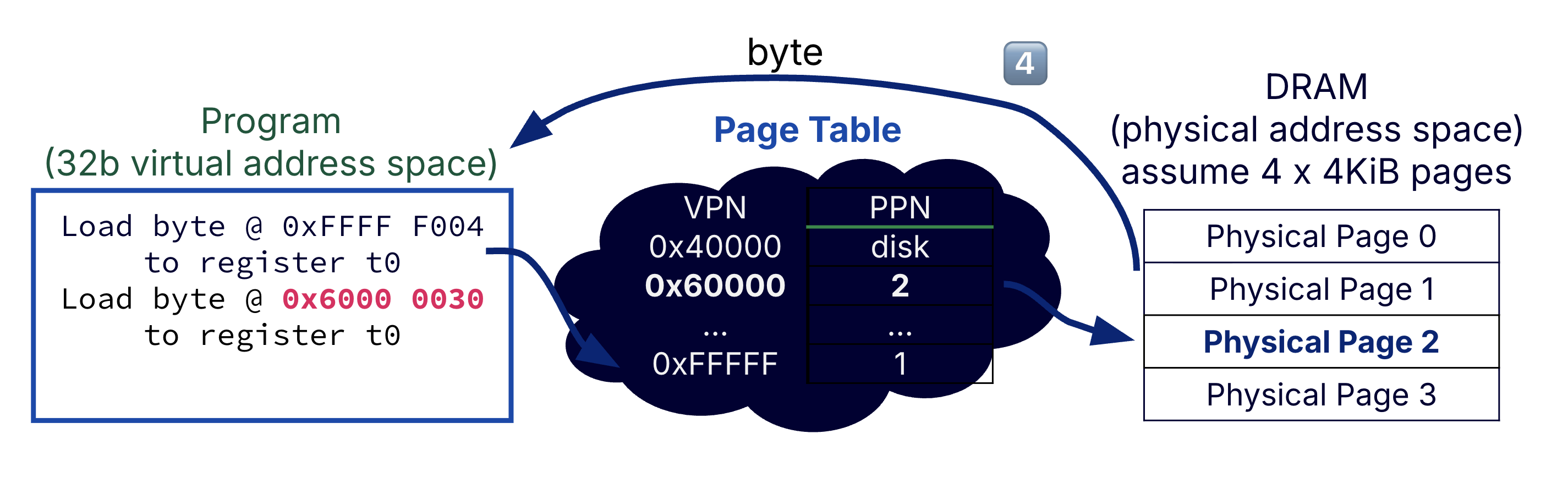

Example of page table walk: read memory from newly loaded page.

FigureĀ 7:Example of page table walk: read memory from newly loaded page.

L35: VM Intro
Paged Memory
L35: VM Intro
Memory Manager
